q13.png ‎(685 × 236 pixels, file size: 6 KB, MIME type: image/png)

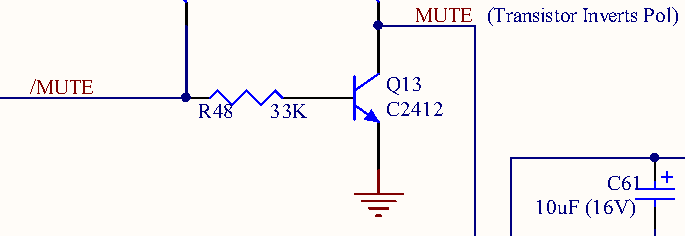

Q13 is an NPN BJT that inverts the /MUTE line
