MVP
From SnesLab
| Basic Info | |||||||
|---|---|---|---|---|---|---|---|
| Addressing Mode | Opcode | Length | Speed | ||||
| Block Move | 44 | 3 bytes | 7 cycles per byte moved | ||||
| Flags Affected | ||||||||
|---|---|---|---|---|---|---|---|---|
| N | V | M | X | D | I | Z | C | |
| . | . | . | . | . | . | . | . | |
MVP (Block Move Positive) is a 65c816 instruction that copies a contiguous block of memory. It is intended to copy a block from a lower address to a higher address (moving it in the positive direction). No flags are affected.
In Eyes & Lichty, the "P" in the mnemonic stands for "Previous" not "Positive."
MVP works even in emulation mode, but the blocks must be in the zeropage.

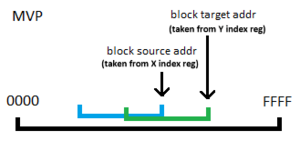

Parameters
- the X index register specifies the ending (highest) source address of the block
- the Y index register specifies the ending (highest) destination address of the block
- the C double accumulator specifies the length of the block in bytes minus one
- the first operand byte specifies the destination bank the block will be in
- the second operand byte specifies the source bank the block starts out in
Execution Sequence
The following loop is repeated until the value in the C double accumulator is $FFFF:
- one byte is copied from the address in X to the address in Y
- both X and Y are decremented
- C is decremented
If interrupted, the current byte finishes copying before servicing the interrupt. The destination bank is written to DBR.
See Also
External Links
- Eyes & Lichty, page 468 on MVP
- Labiak, page 154 on MVP
- snes9x implementation of MVP: https://github.com/snes9xgit/snes9x/blob/master/cpuops.cpp#L3077
- undisbeliever on MVP: https://undisbeliever.net/snesdev/65816-opcodes.html#mvp-block-move-previous
- Clark, Bruce. http://www.6502.org/tutorials/65c816opcodes.html#6.6
