S-DSP/Gaussian Filter
From SnesLab

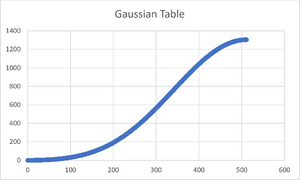

The Gaussian Filter is driven by a 512-entry table of 12-bit unsigned values:
Offset (hex) | Offset (dec) | Value (hex) | Value (dec) |
---|---|---|---|
0 | 0 | 000 | 0 |
1 | 1 | 000 | 0 |
2 | 2 | 000 | 0 |
3 | 3 | 000 | 0 |
4 | 4 | 000 | 0 |
5 | 5 | 000 | 0 |
6 | 6 | 000 | 0 |
7 | 7 | 000 | 0 |
8 | 8 | 000 | 0 |
9 | 9 | 000 | 0 |
A | 10 | 000 | 0 |
B | 11 | 000 | 0 |
C | 12 | 000 | 0 |
D | 13 | 000 | 0 |
E | 14 | 000 | 0 |
F | 15 | 000 | 0 |
10 | 16 | 001 | 1 |
11 | 17 | 001 | 1 |
12 | 18 | 001 | 1 |
13 | 19 | 001 | 1 |
14 | 20 | 001 | 1 |
15 | 21 | 001 | 1 |
16 | 22 | 001 | 1 |
17 | 23 | 001 | 1 |
18 | 24 | 001 | 1 |
19 | 25 | 001 | 1 |
1A | 26 | 001 | 1 |
1B | 27 | 002 | 2 |
1C | 28 | 002 | 2 |
1D | 29 | 002 | 2 |
1E | 30 | 002 | 2 |
1F | 31 | 002 | 2 |
20 | 32 | 002 | 2 |
21 | 33 | 002 | 2 |
22 | 34 | 003 | 3 |
23 | 35 | 003 | 3 |
24 | 36 | 003 | 3 |
25 | 37 | 003 | 3 |
26 | 38 | 003 | 3 |
27 | 39 | 004 | 4 |
28 | 40 | 004 | 4 |
29 | 41 | 004 | 4 |
2A | 42 | 004 | 4 |
2B | 43 | 004 | 4 |
2C | 44 | 005 | 5 |
2D | 45 | 005 | 5 |
2E | 46 | 005 | 5 |
2F | 47 | 005 | 5 |
30 | 48 | 006 | 6 |
31 | 49 | 006 | 6 |
32 | 50 | 006 | 6 |
33 | 51 | 006 | 6 |
34 | 52 | 007 | 7 |
35 | 53 | 007 | 7 |
36 | 54 | 007 | 7 |
37 | 55 | 008 | 8 |
38 | 56 | 008 | 8 |
39 | 57 | 008 | 8 |
3A | 58 | 009 | 9 |
3B | 59 | 009 | 9 |
3C | 60 | 009 | 9 |
3D | 61 | 00A | 10 |
3E | 62 | 00A | 10 |
3F | 63 | 00A | 10 |
40 | 64 | 00B | 11 |
41 | 65 | 00B | 11 |
42 | 66 | 00B | 11 |
43 | 67 | 00C | 12 |
44 | 68 | 00C | 12 |
45 | 69 | 00D | 13 |
46 | 70 | 00D | 13 |
47 | 71 | 00E | 14 |
48 | 72 | 00E | 14 |
49 | 73 | 00F | 15 |
4A | 74 | 00F | 15 |
4B | 75 | 00F | 15 |
4C | 76 | 010 | 16 |
4D | 77 | 010 | 16 |
4E | 78 | 011 | 17 |
4F | 79 | 011 | 17 |
50 | 80 | 012 | 18 |
51 | 81 | 013 | 19 |
52 | 82 | 013 | 19 |
53 | 83 | 014 | 20 |
54 | 84 | 014 | 20 |
55 | 85 | 015 | 21 |
56 | 86 | 015 | 21 |
57 | 87 | 016 | 22 |
58 | 88 | 017 | 23 |
59 | 89 | 017 | 23 |
5A | 90 | 018 | 24 |
5B | 91 | 018 | 24 |
5C | 92 | 019 | 25 |
5D | 93 | 01A | 26 |
5E | 94 | 01B | 27 |
5F | 95 | 01B | 27 |
60 | 96 | 01C | 28 |
61 | 97 | 01D | 29 |
62 | 98 | 01D | 29 |
63 | 99 | 01E | 30 |
64 | 100 | 01F | 31 |
65 | 101 | 020 | 32 |
66 | 102 | 020 | 32 |
67 | 103 | 021 | 33 |
68 | 104 | 022 | 34 |
69 | 105 | 023 | 35 |
6A | 106 | 024 | 36 |
6B | 107 | 024 | 36 |
6C | 108 | 025 | 37 |
6D | 109 | 026 | 38 |
6E | 110 | 027 | 39 |
6F | 111 | 028 | 40 |
70 | 112 | 029 | 41 |
71 | 113 | 02A | 42 |
72 | 114 | 02B | 43 |
73 | 115 | 02C | 44 |
74 | 116 | 02D | 45 |
75 | 117 | 02E | 46 |
76 | 118 | 02F | 47 |
77 | 119 | 030 | 48 |
78 | 120 | 031 | 49 |
79 | 121 | 032 | 50 |
7A | 122 | 033 | 51 |
7B | 123 | 034 | 52 |
7C | 124 | 035 | 53 |
7D | 125 | 036 | 54 |
7E | 126 | 037 | 55 |
7F | 127 | 038 | 56 |
80 | 128 | 03A | 58 |
81 | 129 | 03B | 59 |
82 | 130 | 03C | 60 |
83 | 131 | 03D | 61 |
84 | 132 | 03E | 62 |
85 | 133 | 040 | 64 |
86 | 134 | 041 | 65 |
87 | 135 | 042 | 66 |
88 | 136 | 043 | 67 |
89 | 137 | 045 | 69 |
8A | 138 | 046 | 70 |
8B | 139 | 047 | 71 |
8C | 140 | 049 | 73 |
8D | 141 | 04A | 74 |
8E | 142 | 04C | 76 |
8F | 143 | 04D | 77 |
90 | 144 | 04E | 78 |
91 | 145 | 050 | 80 |
92 | 146 | 051 | 81 |
93 | 147 | 053 | 83 |
94 | 148 | 054 | 84 |
95 | 149 | 056 | 86 |
96 | 150 | 057 | 87 |
97 | 151 | 059 | 89 |
98 | 152 | 05A | 90 |
99 | 153 | 05C | 92 |
9A | 154 | 05E | 94 |
9B | 155 | 05F | 95 |
9C | 156 | 061 | 97 |
9D | 157 | 063 | 99 |
9E | 158 | 064 | 100 |
9F | 159 | 066 | 102 |
A0 | 160 | 068 | 104 |
A1 | 161 | 06A | 106 |
A2 | 162 | 06B | 107 |
A3 | 163 | 06D | 109 |
A4 | 164 | 06F | 111 |
A5 | 165 | 071 | 113 |
A6 | 166 | 073 | 115 |
A7 | 167 | 075 | 117 |
A8 | 168 | 076 | 118 |
A9 | 169 | 078 | 120 |
AA | 170 | 07A | 122 |
AB | 171 | 07C | 124 |
AC | 172 | 07E | 126 |
AD | 173 | 080 | 128 |
AE | 174 | 082 | 130 |
AF | 175 | 084 | 132 |
B0 | 176 | 086 | 134 |
B1 | 177 | 089 | 137 |
B2 | 178 | 08B | 139 |
B3 | 179 | 08D | 141 |
B4 | 180 | 08F | 143 |
B5 | 181 | 091 | 145 |
B6 | 182 | 093 | 147 |
B7 | 183 | 096 | 150 |
B8 | 184 | 098 | 152 |
B9 | 185 | 09A | 154 |
BA | 186 | 09C | 156 |
BB | 187 | 09F | 159 |
BC | 188 | 0A1 | 161 |
BD | 189 | 0A3 | 163 |
BE | 190 | 0A6 | 166 |
BF | 191 | 0A8 | 168 |
C0 | 192 | 0AB | 171 |
C1 | 193 | 0AD | 173 |
C2 | 194 | 0AF | 175 |
C3 | 195 | 0B2 | 178 |
C4 | 196 | 0B4 | 180 |
C5 | 197 | 0B7 | 183 |
C6 | 198 | 0BA | 186 |
C7 | 199 | 0BC | 188 |
C8 | 200 | 0BF | 191 |
C9 | 201 | 0C1 | 193 |
CA | 202 | 0C4 | 196 |
CB | 203 | 0C7 | 199 |
CC | 204 | 0C9 | 201 |
CD | 205 | 0CC | 204 |
CE | 206 | 0CF | 207 |
CF | 207 | 0D2 | 210 |
D0 | 208 | 0D4 | 212 |
D1 | 209 | 0D7 | 215 |
D2 | 210 | 0DA | 218 |
D3 | 211 | 0DD | 221 |
D4 | 212 | 0E0 | 224 |
D5 | 213 | 0E3 | 227 |
D6 | 214 | 0E6 | 230 |
D7 | 215 | 0E9 | 233 |
D8 | 216 | 0EC | 236 |
D9 | 217 | 0EF | 239 |
DA | 218 | 0F2 | 242 |
DB | 219 | 0F5 | 245 |
DC | 220 | 0F8 | 248 |
DD | 221 | 0FB | 251 |
DE | 222 | 0FE | 254 |
DF | 223 | 101 | 257 |
E0 | 224 | 104 | 260 |
E1 | 225 | 107 | 263 |
E2 | 226 | 10B | 267 |
E3 | 227 | 10E | 270 |
E4 | 228 | 111 | 273 |
E5 | 229 | 114 | 276 |
E6 | 230 | 118 | 280 |
E7 | 231 | 11B | 283 |
E8 | 232 | 11E | 286 |
E9 | 233 | 122 | 290 |
EA | 234 | 125 | 293 |
EB | 235 | 129 | 297 |
EC | 236 | 12C | 300 |
ED | 237 | 130 | 304 |
EE | 238 | 133 | 307 |
EF | 239 | 137 | 311 |
F0 | 240 | 13A | 314 |
F1 | 241 | 13E | 318 |
F2 | 242 | 141 | 321 |
F3 | 243 | 145 | 325 |
F4 | 244 | 148 | 328 |
F5 | 245 | 14C | 332 |
F6 | 246 | 150 | 336 |
F7 | 247 | 153 | 339 |
F8 | 248 | 157 | 343 |
F9 | 249 | 15B | 347 |
FA | 250 | 15F | 351 |
FB | 251 | 162 | 354 |
FC | 252 | 166 | 358 |
FD | 253 | 16A | 362 |
FE | 254 | 16E | 366 |
FF | 255 | 172 | 370 |
100 | 256 | 176 | 374 |
101 | 257 | 17A | 378 |
102 | 258 | 17D | 381 |
103 | 259 | 181 | 385 |
104 | 260 | 185 | 389 |
105 | 261 | 189 | 393 |
106 | 262 | 18D | 397 |
107 | 263 | 191 | 401 |
108 | 264 | 195 | 405 |
109 | 265 | 19A | 410 |
10A | 266 | 19E | 414 |
10B | 267 | 1A2 | 418 |
10C | 268 | 1A6 | 422 |
10D | 269 | 1AA | 426 |
10E | 270 | 1AE | 430 |
10F | 271 | 1B2 | 434 |
110 | 272 | 1B7 | 439 |
111 | 273 | 1BB | 443 |
112 | 274 | 1BF | 447 |
113 | 275 | 1C3 | 451 |
114 | 276 | 1C8 | 456 |
115 | 277 | 1CC | 460 |
116 | 278 | 1D0 | 464 |
117 | 279 | 1D5 | 469 |
118 | 280 | 1D9 | 473 |
119 | 281 | 1DD | 477 |
11A | 282 | 1E2 | 482 |
11B | 283 | 1E6 | 486 |
11C | 284 | 1EB | 491 |
11D | 285 | 1EF | 495 |
11E | 286 | 1F3 | 499 |
11F | 287 | 1F8 | 504 |
120 | 288 | 1FC | 508 |
121 | 289 | 201 | 513 |
122 | 290 | 205 | 517 |
123 | 291 | 20A | 522 |
124 | 292 | 20F | 527 |
125 | 293 | 213 | 531 |
126 | 294 | 218 | 536 |
127 | 295 | 21C | 540 |
128 | 296 | 221 | 545 |
129 | 297 | 226 | 550 |
12A | 298 | 22A | 554 |
12B | 299 | 22F | 559 |
12C | 300 | 233 | 563 |
12D | 301 | 238 | 568 |
12E | 302 | 23D | 573 |
12F | 303 | 241 | 577 |
130 | 304 | 246 | 582 |
131 | 305 | 24B | 587 |
132 | 306 | 250 | 592 |
133 | 307 | 254 | 596 |
134 | 308 | 259 | 601 |
135 | 309 | 25E | 606 |
136 | 310 | 263 | 611 |
137 | 311 | 267 | 615 |
138 | 312 | 26C | 620 |
139 | 313 | 271 | 625 |
13A | 314 | 276 | 630 |
13B | 315 | 27B | 635 |
13C | 316 | 280 | 640 |
13D | 317 | 284 | 644 |
13E | 318 | 289 | 649 |
13F | 319 | 28E | 654 |
140 | 320 | 293 | 659 |
141 | 321 | 298 | 664 |
142 | 322 | 29D | 669 |
143 | 323 | 2A2 | 674 |
144 | 324 | 2A6 | 678 |
145 | 325 | 2AB | 683 |
146 | 326 | 2B0 | 688 |
147 | 327 | 2B5 | 693 |
148 | 328 | 2BA | 698 |
149 | 329 | 2BF | 703 |
14A | 330 | 2C4 | 708 |
14B | 331 | 2C9 | 713 |
14C | 332 | 2CE | 718 |
14D | 333 | 2D3 | 723 |
14E | 334 | 2D8 | 728 |
14F | 335 | 2DC | 732 |
150 | 336 | 2E1 | 737 |
151 | 337 | 2E6 | 742 |
152 | 338 | 2EB | 747 |
153 | 339 | 2F0 | 752 |
154 | 340 | 2F5 | 757 |
155 | 341 | 2FA | 762 |
156 | 342 | 2FF | 767 |
157 | 343 | 304 | 772 |
158 | 344 | 309 | 777 |
159 | 345 | 30E | 782 |
15A | 346 | 313 | 787 |
15B | 347 | 318 | 792 |
15C | 348 | 31D | 797 |
15D | 349 | 322 | 802 |
15E | 350 | 326 | 806 |
15F | 351 | 32B | 811 |
160 | 352 | 330 | 816 |
161 | 353 | 335 | 821 |
162 | 354 | 33A | 826 |
163 | 355 | 33F | 831 |
164 | 356 | 344 | 836 |
165 | 357 | 349 | 841 |
166 | 358 | 34E | 846 |
167 | 359 | 353 | 851 |
168 | 360 | 357 | 855 |
169 | 361 | 35C | 860 |
16A | 362 | 361 | 865 |
16B | 363 | 366 | 870 |
16C | 364 | 36B | 875 |
16D | 365 | 370 | 880 |
16E | 366 | 374 | 884 |
16F | 367 | 379 | 889 |
170 | 368 | 37E | 894 |
171 | 369 | 383 | 899 |
172 | 370 | 388 | 904 |
173 | 371 | 38C | 908 |
174 | 372 | 391 | 913 |
175 | 373 | 396 | 918 |
176 | 374 | 39B | 923 |
177 | 375 | 39F | 927 |
178 | 376 | 3A4 | 932 |
179 | 377 | 3A9 | 937 |
17A | 378 | 3AD | 941 |
17B | 379 | 3B2 | 946 |
17C | 380 | 3B7 | 951 |
17D | 381 | 3BB | 955 |
17E | 382 | 3C0 | 960 |
17F | 383 | 3C5 | 965 |
180 | 384 | 3C9 | 969 |
181 | 385 | 3CE | 974 |
182 | 386 | 3D2 | 978 |
183 | 387 | 3D7 | 983 |
184 | 388 | 3DC | 988 |
185 | 389 | 3E0 | 992 |
186 | 390 | 3E5 | 997 |
187 | 391 | 3E9 | 1001 |
188 | 392 | 3ED | 1005 |
189 | 393 | 3F2 | 1010 |
18A | 394 | 3F6 | 1014 |
18B | 395 | 3FB | 1019 |
18C | 396 | 3FF | 1023 |
18D | 397 | 403 | 1027 |
18E | 398 | 408 | 1032 |
18F | 399 | 40C | 1036 |
190 | 400 | 410 | 1040 |
191 | 401 | 415 | 1045 |
192 | 402 | 419 | 1049 |
193 | 403 | 41D | 1053 |
194 | 404 | 421 | 1057 |
195 | 405 | 425 | 1061 |
196 | 406 | 42A | 1066 |
197 | 407 | 42E | 1070 |
198 | 408 | 432 | 1074 |
199 | 409 | 436 | 1078 |
19A | 410 | 43A | 1082 |
19B | 411 | 43E | 1086 |
19C | 412 | 442 | 1090 |
19D | 413 | 446 | 1094 |
19E | 414 | 44A | 1098 |
19F | 415 | 44E | 1102 |
1A0 | 416 | 452 | 1106 |
1A1 | 417 | 455 | 1109 |
1A2 | 418 | 459 | 1113 |
1A3 | 419 | 45D | 1117 |
1A4 | 420 | 461 | 1121 |
1A5 | 421 | 465 | 1125 |
1A6 | 422 | 468 | 1128 |
1A7 | 423 | 46C | 1132 |
1A8 | 424 | 470 | 1136 |
1A9 | 425 | 473 | 1139 |
1AA | 426 | 477 | 1143 |
1AB | 427 | 47A | 1146 |
1AC | 428 | 47E | 1150 |
1AD | 429 | 481 | 1153 |
1AE | 430 | 485 | 1157 |
1AF | 431 | 488 | 1160 |
1B0 | 432 | 48C | 1164 |
1B1 | 433 | 48F | 1167 |
1B2 | 434 | 492 | 1170 |
1B3 | 435 | 496 | 1174 |
1B4 | 436 | 499 | 1177 |
1B5 | 437 | 49C | 1180 |
1B6 | 438 | 49F | 1183 |
1B7 | 439 | 4A2 | 1186 |
1B8 | 440 | 4A6 | 1190 |
1B9 | 441 | 4A9 | 1193 |
1BA | 442 | 4AC | 1196 |
1BB | 443 | 4AF | 1199 |
1BC | 444 | 4B2 | 1202 |
1BD | 445 | 4B5 | 1205 |
1BE | 446 | 4B7 | 1207 |
1BF | 447 | 4BA | 1210 |
1C0 | 448 | 4BD | 1213 |
1C1 | 449 | 4C0 | 1216 |
1C2 | 450 | 4C3 | 1219 |
1C3 | 451 | 4C5 | 1221 |
1C4 | 452 | 4C8 | 1224 |
1C5 | 453 | 4CB | 1227 |
1C6 | 454 | 4CD | 1229 |
1C7 | 455 | 4D0 | 1232 |
1C8 | 456 | 4D2 | 1234 |
1C9 | 457 | 4D5 | 1237 |
1CA | 458 | 4D7 | 1239 |
1CB | 459 | 4D9 | 1241 |
1CC | 460 | 4DC | 1244 |
1CD | 461 | 4DE | 1246 |
1CE | 462 | 4E0 | 1248 |
1CF | 463 | 4E3 | 1251 |
1D0 | 464 | 4E5 | 1253 |
1D1 | 465 | 4E7 | 1255 |
1D2 | 466 | 4E9 | 1257 |
1D3 | 467 | 4EB | 1259 |
1D4 | 468 | 4ED | 1261 |
1D5 | 469 | 4EF | 1263 |
1D6 | 470 | 4F1 | 1265 |
1D7 | 471 | 4F3 | 1267 |
1D8 | 472 | 4F5 | 1269 |
1D9 | 473 | 4F6 | 1270 |
1DA | 474 | 4F8 | 1272 |
1DB | 475 | 4FA | 1274 |
1DC | 476 | 4FB | 1275 |
1DD | 477 | 4FD | 1277 |
1DE | 478 | 4FF | 1279 |
1DF | 479 | 500 | 1280 |
1E0 | 480 | 502 | 1282 |
1E1 | 481 | 503 | 1283 |
1E2 | 482 | 504 | 1284 |
1E3 | 483 | 506 | 1286 |
1E4 | 484 | 507 | 1287 |
1E5 | 485 | 508 | 1288 |
1E6 | 486 | 50A | 1290 |
1E7 | 487 | 50B | 1291 |
1E8 | 488 | 50C | 1292 |
1E9 | 489 | 50D | 1293 |
1EA | 490 | 50E | 1294 |
1EB | 491 | 50F | 1295 |
1EC | 492 | 510 | 1296 |
1ED | 493 | 511 | 1297 |
1EE | 494 | 511 | 1297 |
1EF | 495 | 512 | 1298 |
1F0 | 496 | 513 | 1299 |
1F1 | 497 | 514 | 1300 |
1F2 | 498 | 514 | 1300 |
1F3 | 499 | 515 | 1301 |
1F4 | 500 | 516 | 1302 |
1F5 | 501 | 516 | 1302 |
1F6 | 502 | 517 | 1303 |
1F7 | 503 | 517 | 1303 |
1F8 | 504 | 517 | 1303 |
1F9 | 505 | 518 | 1304 |
1FA | 506 | 518 | 1304 |
1FB | 507 | 518 | 1304 |
1FC | 508 | 518 | 1304 |
1FD | 509 | 518 | 1304 |
1FE | 510 | 519 | 1305 |
1FF | 511 | 519 | 1305 |
