Master Clock
From SnesLab
(Redirected from 21MHz clock)
The Master Clock is 21.48 MHz on NTSC and 21.28 MHz on PAL. It is a crystal oscillator.[2]

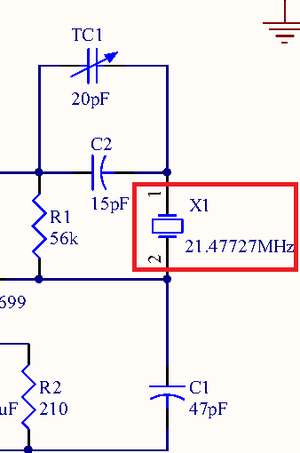

The master clock (X1) is in region A4 of the jwdonal schematic
The S-DSP has an unconnected pin 40 which may have been intended to be connected to the master clock at some point.
See Also
References
- http://problemkaputt.de/fullsnes.htm#snestimingoscillators
- Sanglard, Fabien. The Hearts of the Super Nintendo. https://fabiensanglard.net/snes_hearts
