DC Jack

From SnesLab
Jump to: navigation, search

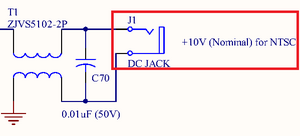

The DJ Jack is in region A6 of the jwdonal schematic

The DC Jack is located on the back of the Control Deck and is what the AC Adapter plugs into. On NTSC consoles (revision 2 mobo), it nominally supplies +10 volts.
