Fuse

From SnesLab
Jump to: navigation, search

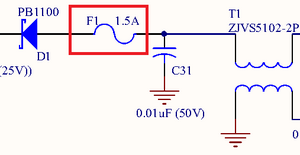

Fuse (F1) in region A6 of the jwdonal schematic

The Fuse is designed to prevent damage to the console. It is located in series with a Schottky diode and the T1 transformer.

It has part number 22423. [2]

References

  1. https://arcadesupplycompany.com/products/125v-1-5a-pico-fuse
  2. page 1 of Book II of the official Super Nintendo development manual
