Inter-PPU Bus

From SnesLab
Jump to: navigation, search

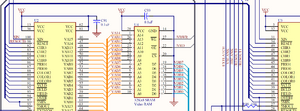

The Inter-PPU bus, straddling regions A2 to B3 in the jwdonal schematic

The Inter-PPU Bus connects S-PPU1 and S-PPU2 together. It is not connected to anything else. The trace names are:

  • CHR3
  • CHR2
  • CHR1
  • CHR0
  • PRIO1
  • PRIO0
  • COLOR2
  • COLOR1
  • COLOR0
  • /VCLD
  • /HCLD
  • FIELD
  • /OVER
  • /5MIN - 5 MHz In
  • /5MOUT - 5 MHz Out
