L1 is an inductor that connects the 3.58M line to ground. It is rated at 22 microhenries.

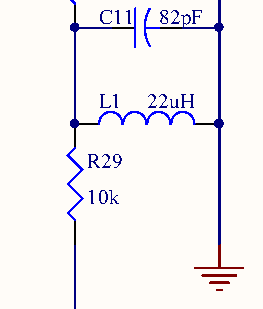

L1, straddling regions B4 and B5 of the jwdonal schematic
