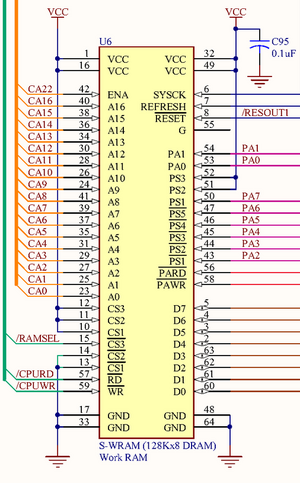

The WRAM chip is straddling regions C1 and D1 in the jwdonal schematic

WRAM (Work RAM) serves as the SNES' main memory. It is 128K x 8 bits (131,072 bytes) in size, which is exactly two banks. It has part number 21326. [3]

Even though WRAM has both Address Bus A and Address Bus B connected to it, the chip can only pay attention to one at a time, so WRAM-to-WRAM DMA isn't possible.

WRAM is left intact by a Reset. [2] But, Nintendo still recommendeds checking to make sure the contents are correct after a reset. [5] WRAM is DRAM and as such must be refreshed.

See Also

References

  1. https://problemkaputt.de/fullsnes.htm#snesmemoryworkramaccess
  2. https://problemkaputt.de/fullsnes.htm#snescontrollersotherinputs
  3. page 1 of Book II, "Super NES Parts List" in the official Nintendo development manual
  4. page 2-22-1 of Book II, lbid
  5. caution #11: page 2-24-3 of Book I
