PB1100

From SnesLab
Jump to: navigation, search

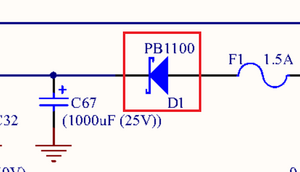

Schottky diode in region A5 of the jwdonal schematic

PB1100 is a Schottky diode located in series with the Fuse and the Power Switch. There is a roughly a 1 volt drop in potential across it.[1]

References

  1. https://problemkaputt.de/fullsnes.htm#snespowersupply
