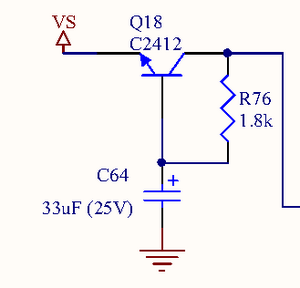

Q18, in region A4 of the jwdonal schematic

Q18 is an NPN bipolar junction transistor whose emitter appears to generate VS. R76 connects the collector to the base. The collector is also connected directly to the voltage regulator side of the Power Switch.
