Cartridge Slot

From SnesLab
(Redirected from cartridge slot)
Jump to: navigation, search

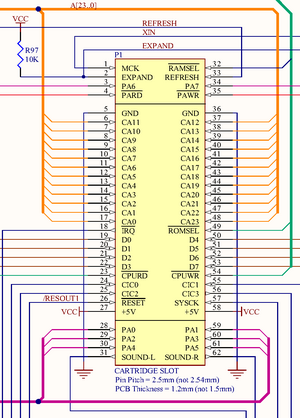

The cartridge slot, straddling regions C2 and D2 in the jwdonal schematic.

The Cartridge Slot is located on the top of the console, where a Game Pak is inserted. At the bottom of the cartridge slot is the Game Pak (GPK) Connector, which has 62 pin pads. The knobs of the opposite end of the Eject Button lever are also at the slot's bottom; they push the Game Pak out of the connector when the button is pressed (at least on the Super Nintendo, not sure about Super Famicom).

The Super Nintendo has small plastic tabs in the cartridge slot to prevent Super Famicom games from being inserted. These can be destroyed to allow Super Famicom games to fit into the cartridge slot and play.

Most cartridges only have the middle 46 pins (the ones in-between the two black horizontal line segments in the above schematic). The remaining 16 pins tend to only exist on cartridges that contain enhancement chips.
